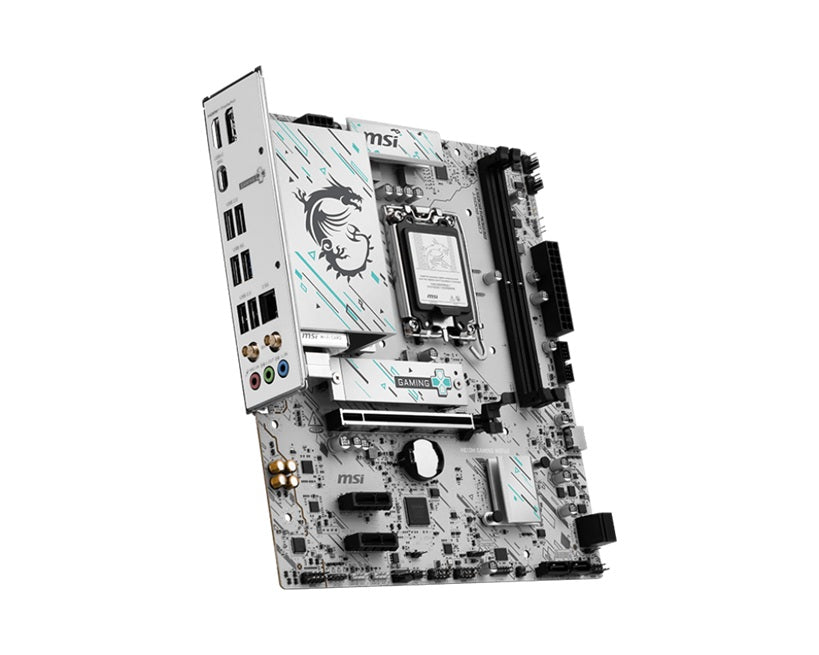

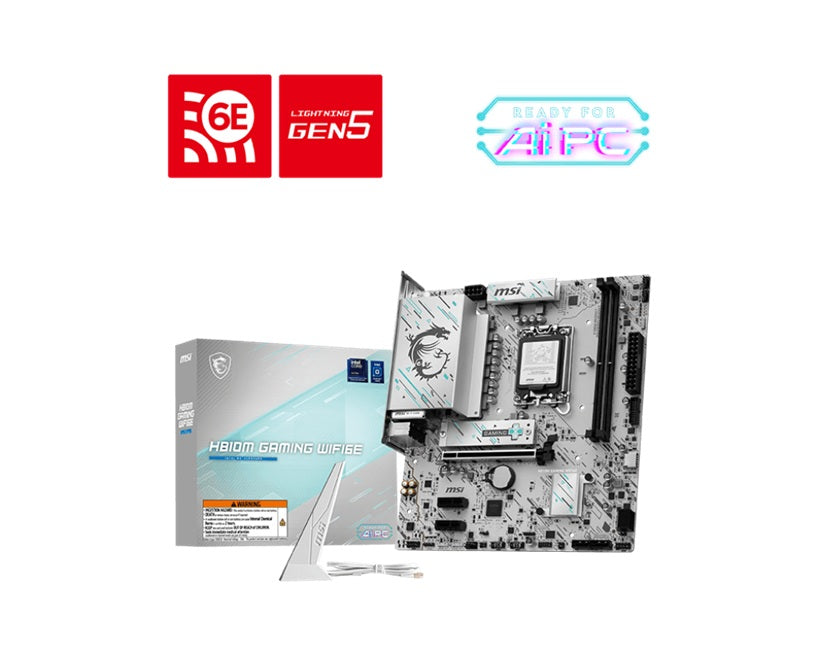

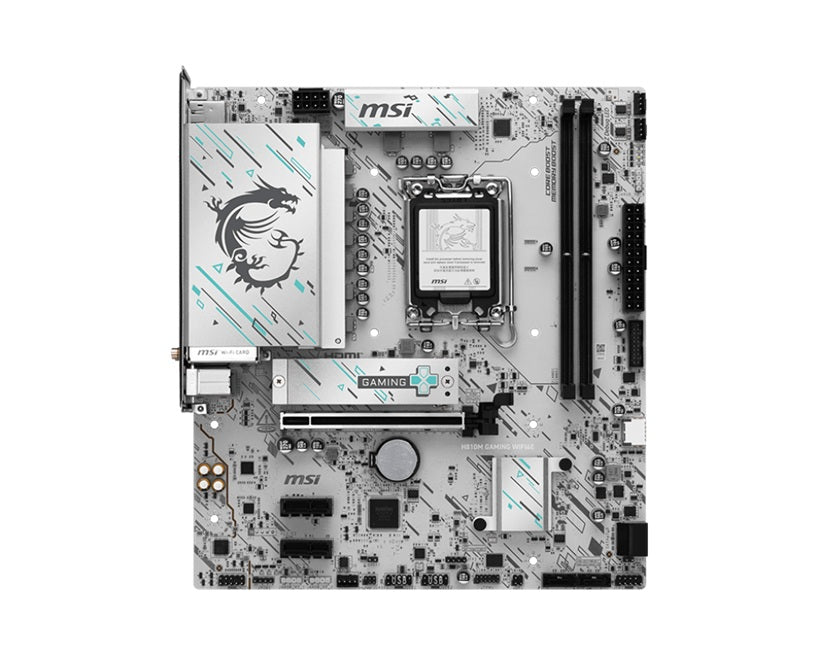

MSI H810M GAMING WIFI6E: LGA1851, Intel H810, DDR5 6400+, PCIe 5.0 x16, M.2 Gen4, Wi-Fi 6E, BT 5.3, 5G LAN, HDMI 2.1, DP 1.4, 7.1 HD Audio

MSI H810M GAMING WIFI6E: LGA1851, Intel H810, DDR5 6400+, PCIe 5.0 x16, M.2 Gen4, Wi-Fi 6E, BT 5.3, 5G LAN, HDMI 2.1, DP 1.4, 7.1 HD Audio
FEATURES
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
SPECIFICATIONS
Model Name H810M GAMING WIFI6E
CPU Support Supports Intel® Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel® H810 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 2x PCIe 4.0 x1 slots
Display Interface 1 x HDMI™ 2.1, 1 x DisplayPort 1.4 – Requires Processor
Graphics
Memory Support 2 DIMMs, Dual Channel DDR5 - 6400+ MT/s (OC)
Storage 1x M.2 Gen4 x4 64Gbps slot,
4x SATA 6Gbps ports

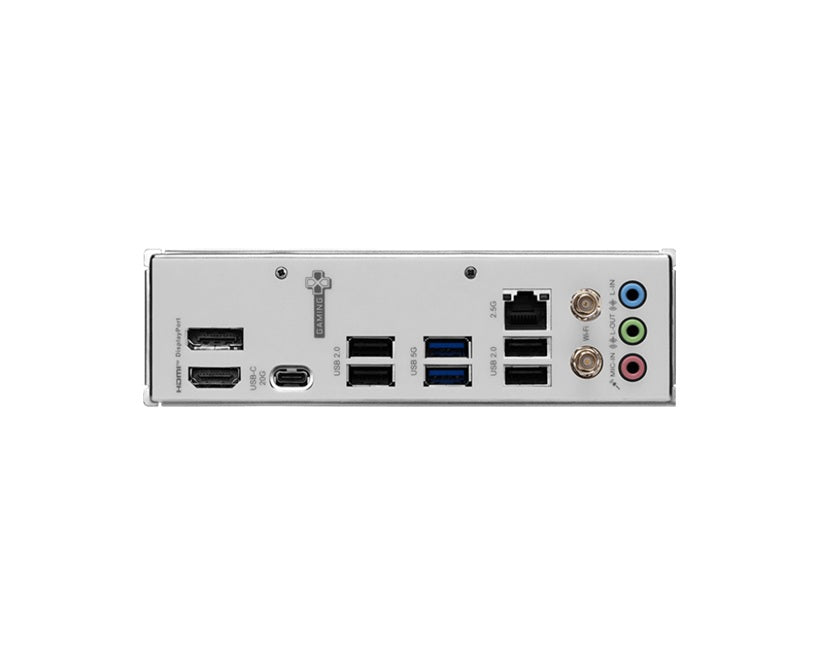

USB ports 1 x USB 20Gbps (1 Type-C)
1 x USB 10Gbps (1 Type-C)
4 x USB 5Gbps (4 Type-A)
8 x USB 2.0
LAN Realtek® 8125D 5G LAN
WiFi / BT Wi-Fi 6E module, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
