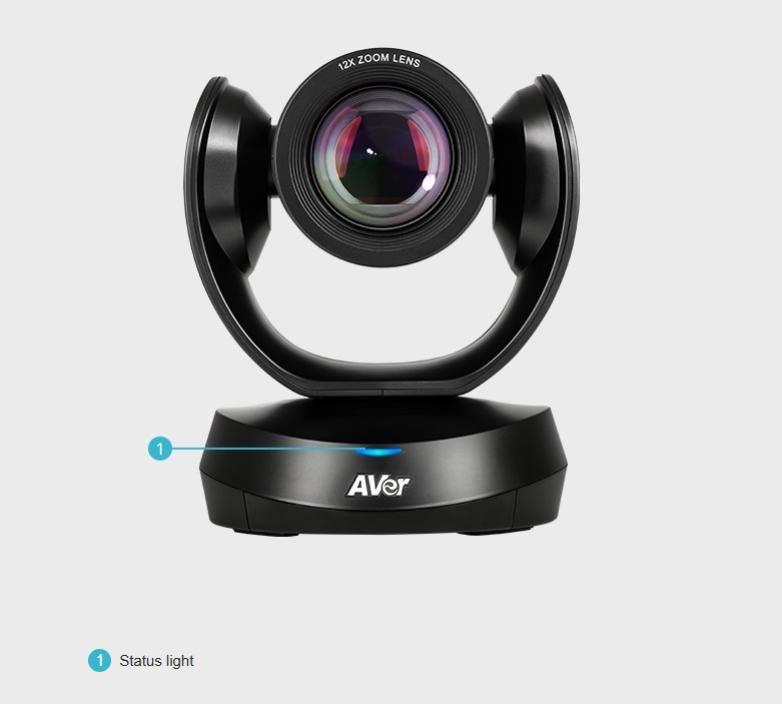

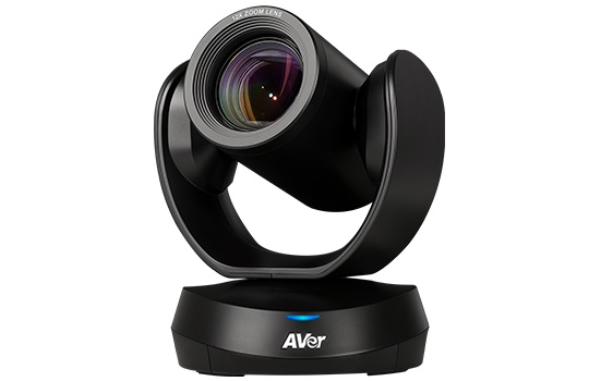

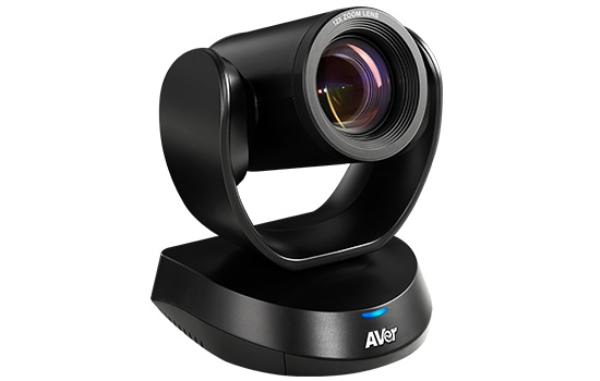

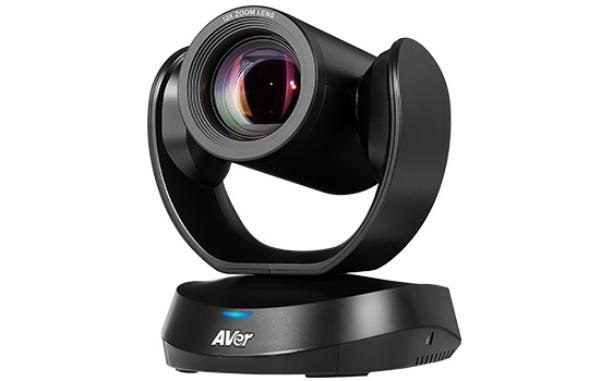

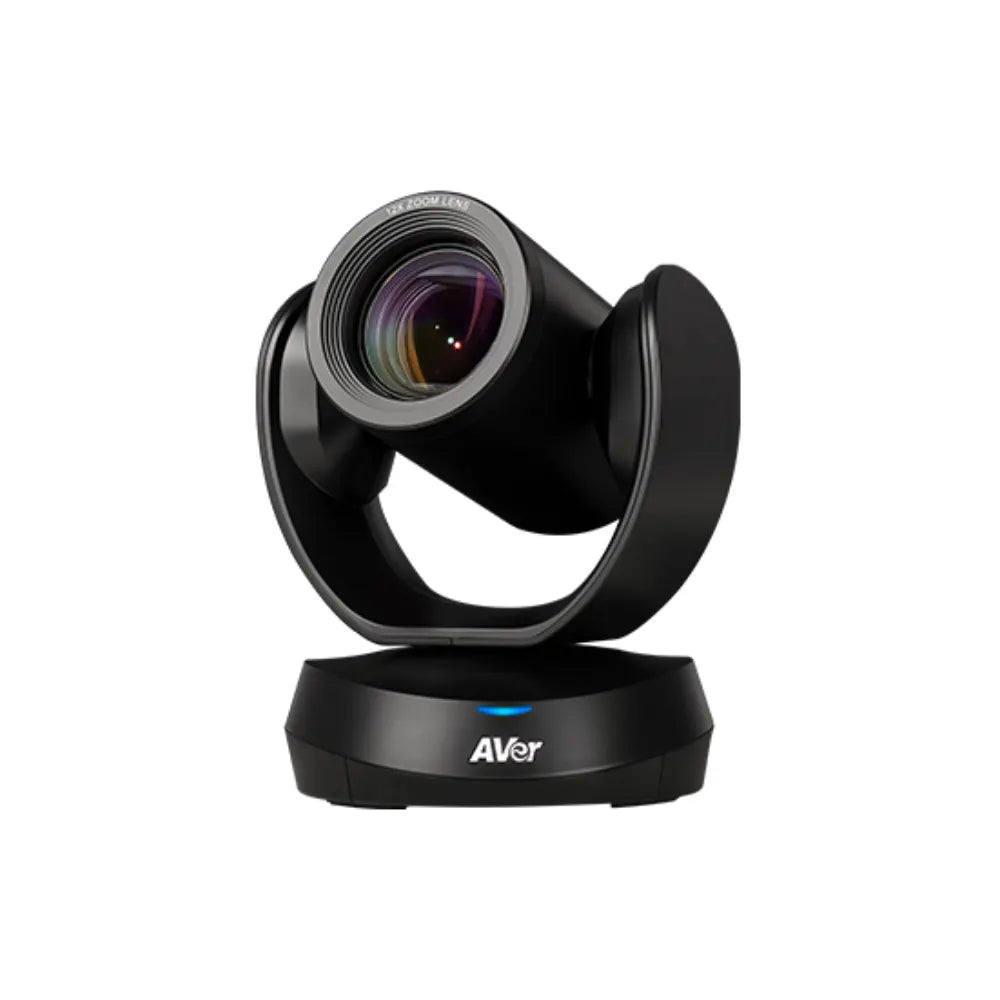

AVer CAM520Pro3 PTZ Conference Camera

The AVer CAM520 Pro3 is extremely versatile, offering users a 36X total zoom PTZ camera, upgraded AVer SmartFrame, Preset Framing, and a Sony WDR Sensor. In addition, 3-way outputs - including an HDMI connection - deliver more streaming options. But what makes the CAM520 Pro3 truly special is Smart Composition, an embedded AI function that quickly captures meeting participants’ images to facilitate productive video conferences in mid-to-large meeting rooms. Specifications Camera Image Sensor: 1/2.8” 4K Sony Exmor CMOS Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps SmartFrame for automatic FOV adjustment to fit all participants Smart Composition function offers great visibility for individual participant in the meeting room Innovative Preset Framing: Follow presenter based on preset areas WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions Zoom: 36X* total zoom (12X optical zoom) Field of view(D/H/V): 80.5°/72.8°/44.1° Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele) Lens F#: 1.6 (wide) ~ 2.8 (tele) Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2) Minimum focus distance: 1m Standard tripod screw holes and Kensington slot People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage *Please use Room Management (PTZApp 2) to set up 36X zoom. Connectivity 12V/2A power adaptor Type Non-B Mini DIN 9 for RS232 in & out connection (VISCA, control panel and camera daisy chain) USB 3.1 type-B IP (RJ45) HDMI 1.4 System Requirements Windows® 7/10/11 Mac OS X 10.14 or later Google Chromebox 3 version 94.0.4606.114 or later Motorised Pan & Tilt Movement Pan: ±170° Tilt: +90° (up) -30° (down) 10 camera presets (via remote control) Fast and quiet pan & tilt movement Control IR remote control VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC plug and play WebUI: Browser IP access via Chrome (Does not support Internet Explorer) Room Management (PTZApp 2) USB 3.1 Gen 1 Type-B, backward compatible with USB 2.0 UVC 1.1 (USB video) PC Hardware Requirement 3.2 GHz Intel® Core™ i5-4460 processor 8 GB RAM or more USB 3.1 port , backward compatible with USB2.0 port Software Tools Room Management (PTZApp 2) - Supports Windows® 7 or later, macOS® 11.6 or later Enterprise Management (PTZ Management) - Supports Windows® 10 or later Cloud Management - Supports Windows® 7 or later, macOS® 10 or later EZManager 2 - Supports Windows® 7 or later EZLive - Supports Windows® 7 or later, macOS® 10.13 or later Compatible Applications Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

Master the Details with a 36X* Total Zoom Lens and Boost Your Business

Accurately Capture Attendees with AVer Smart Composition to Access Layout Flexibility

More Efficiency and Security with Upgraded AVer SmartFrame

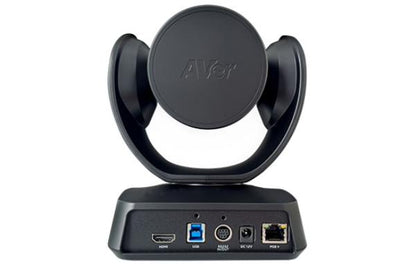

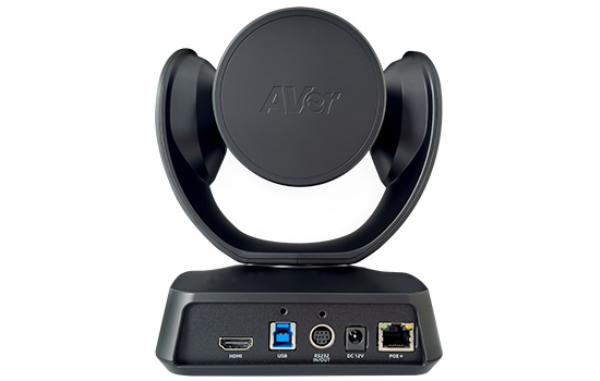

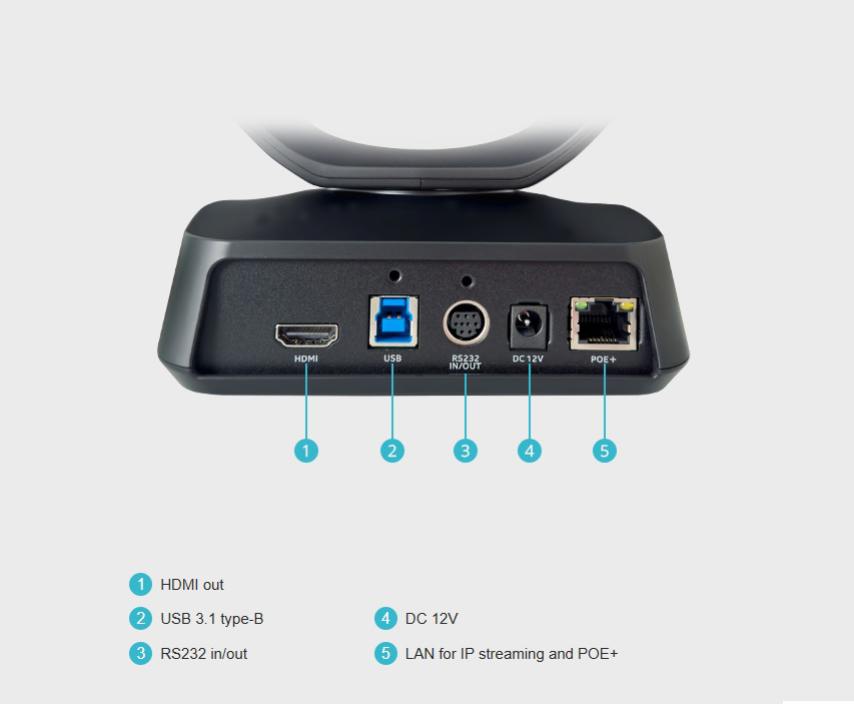

HDMI Enables Dual Display and 3-Way Output, Creating Diverse Display Options

Enjoy Enterprise-Grade Imaging with No Limits
