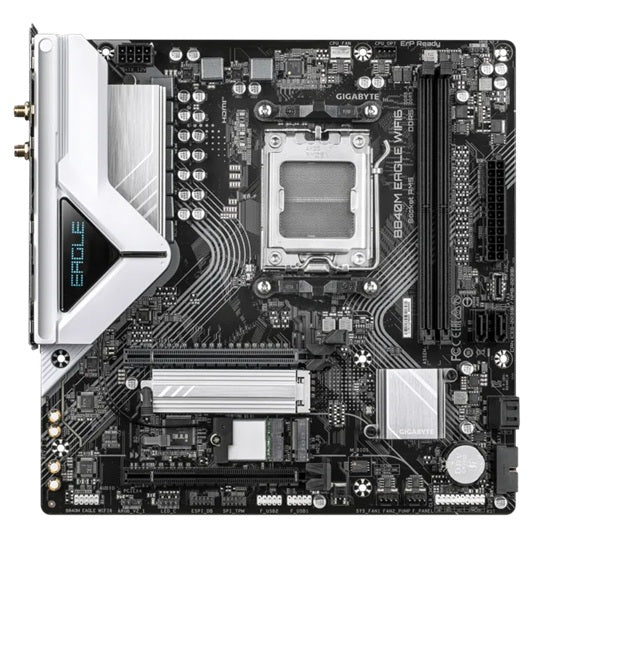

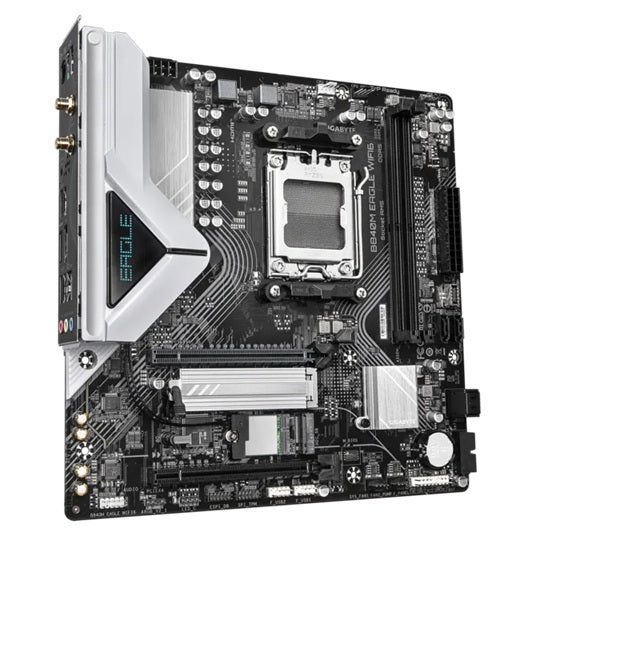

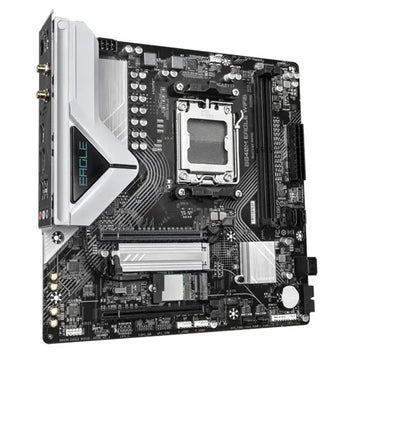

B840M EAGLE ,AMD AM5 B850, Ryzen 7000/8000/9000, 4xDDR5 256GB EXPO/XMP, PCIe 5.0 x16, 2xM.2, 4xSATA, 2.5GbE LAN, Wi-Fi 6E, HDMI, DP, USB-C/3.2

B840M EAGLE ,AMD AM5 B850, Ryzen 7000/8000/9000, 4xDDR5 256GB EXPO/XMP, PCIe 5.0 x16, 2xM.2, 4xSATA, 2.5GbE LAN, Wi-Fi 6E, HDMI, DP, USB-C/3.2
Processor Support:
•
Compatible with AMD Ryzen™ 9000, 8000, and 7000 series CPUs.
•Supports integrated Radeon™ graphics on compatible processors, allowing for triple-display setups via HDMI and DisplayPort.
Memory:
•4 DDR5 DIMM slots supporting up to 256 GB of system memory.
•Supports ultra-fast DDR5 memory speeds up to 8200 MT/s (overclocked), with dual-channel architecture.
•Compatible with AMD EXPO™ and Intel XMP memory profiles for easy overclocking.
Integrated Graphics:
•
Features AMD Radeon™ Graphics support with:
•1 x HDMI 2.1 port (up to 4K@60Hz, HDR, HDCP 2.3)
•2 x DisplayPort 1.4 ports (up to 4K@144Hz)
•Supports up to three displays simultaneously, depending on CPU graphics capabilities.
Networking Connectivity:
•Wired: Realtek® 2.5GbE LAN for high-speed, low-latency networking.
•
Wireless: Realtek® Wi-Fi 6E (RTL8852CE) for next-gen wireless connectivity.
Expansion Slots:
•1 x PCIe x16 slot integrated with the CPU (supports PCIe 5.0 or 4.0 depending on processor series).
•1 x PCIe x16 slot via the chipset, running at PCIe 3.0 x4.
•
Flexible support for graphics cards and NVMe SSDs.
Storage Options:
•
Dual M.2 slots integrated with the CPU:
•
M2A_CPU: Supports PCIe 5.0/4.0 NVMe SSDs, sizes up to 25110
•
M2B_CPU: Supports PCIe 4.0 NVMe SSDs, sizes up to 22110
•4 x SATA 6Gb/s ports for traditional storage drives.
•RAID support for NVMe (0,1,5,10) and SATA drives (0,1,10), with RAID 5 exclusive to Ryzen 9000 series.
USB Connectivity:
•

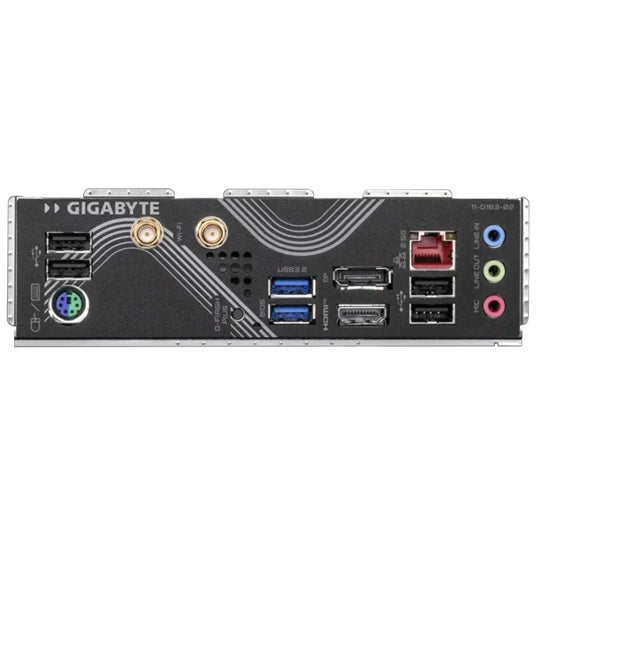

Rear I/O:
•1 x USB Type-C® (USB 3.2 Gen 2)
•1 x USB 3.2 Gen 2 Type-A
•4 x USB 2.0/1.
•1
Internal headers:
•1 x USB Type-C® (USB 3.2 Gen 2)
•2 x USB 3.2 Gen 1
•
4 x USB 2.0/1.1
