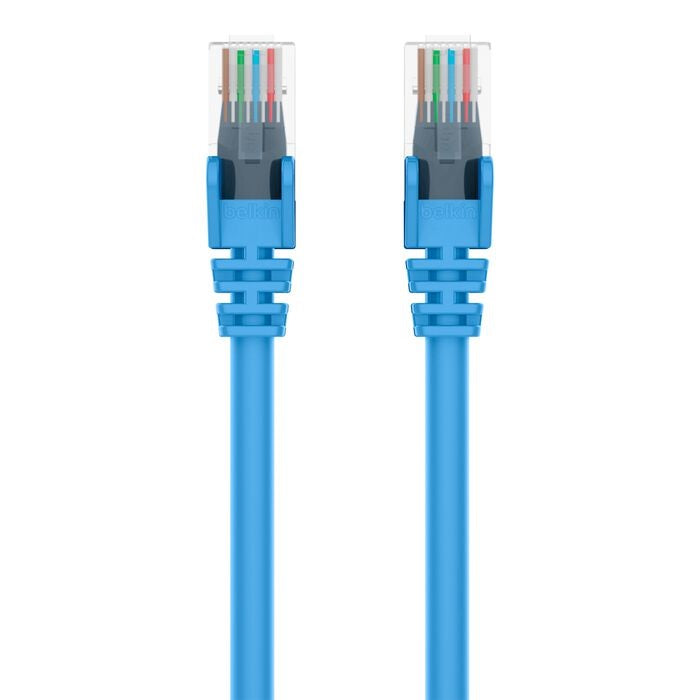

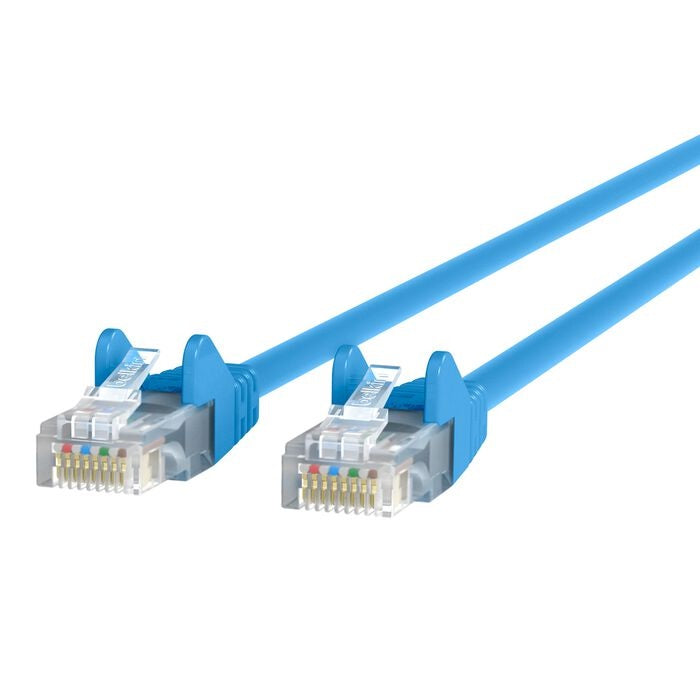

Belkin Cat6 Network Cables (5M) - Blue (A3L980bt05MBLUS), Exceeds 500MHz In Performance Tests, Snagless Prevents Breaking Cracking, 2 Years Warranty

Belkin Cat6 Network Cables (5M) - Blue (A3L980bt05MBLUS)

At a Glance
Maximise your network speed with a 7-foot high-bandwidth CAT6 cable.
Ideal for VoIP, video, and file transfers
Exceeds 500MHz in performance tests
Belkin 2 year warranty
Technical Specifications
Cable Characteristic
Unshielded twisted pair (UTP)
Cable Type
Cat 6
Characteristic Impedence
100±15Ω @ 1 ~ 550MHz
100±15Ω @ 1 ~ 550MHz
Conductor Construction
Bare Stranded Copper
Conductor Resistance
93.8Ω/km/20°C max
Conductor Size
24AWG x 4pairs
Connector on First End
1 x RJ-45 - male
Connector on Second End
1 x RJ-45 - male
Connectors
RJ45
Dielectric Strength
AC 1.5kV
Flame Retardant Test
CM
Insulation Material
HDPE
Jacket Diameter
5.9±0.15mm
Jacket Material
PVC
Mutual Capacitance
56pF/m max
Propagation Delay
536nS/100m max @ 550MHz
Spark Test
2.5kV
Standards Compliance
ISO/IEC 11801; TIA/EIA-568-B.2-1
Structural Return Loss
8.6dB min at 550MHz
