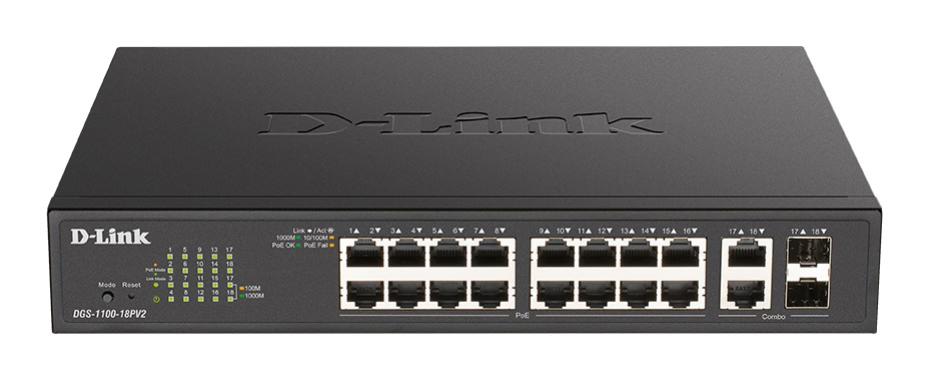

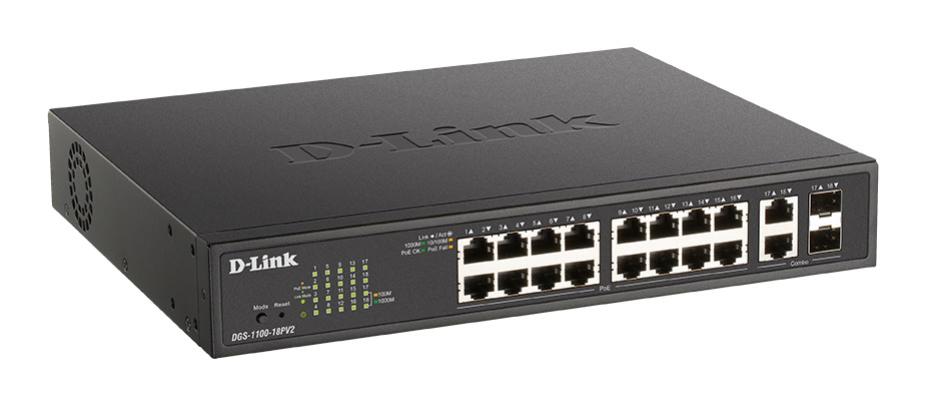

D-Link 18-Port Gigabit Smart Managed PoE Switch with 16 PoE and 2 Combo GE/SFP

The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.

RJ-45 Ports: 16

RJ-45 Speeds: 10/100/1000

Combo Ports (RJ-45 + SFP): 16 PoE + 2 Combo GE/SFP

SFP (Small Form-Factor Pluggable) Ports : 2

SFP Speeds: 16

PoE++ (60w) or higher available?: Yes

Number of PoE Ports: 16

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 26.78 Mpps

Switching Capacity in Gigabits per Second (Gbps): 36 Gbps

Web-based GUI: Yes

Redundant Power Supply: No

19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)

DIN-Rail Mountable: No

Stacking Capacity (Physical): No

Stacking Capacity (Virtual): No

IPv4 Routing: Yes

IPv6 Routing: Yes

DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes

Ruggedized: No

Operating Temperature: -5 to 50 C

Unit dimensions: 280 x 230 x 44 mm

Warranty Licence: Limited Lifetime Warranty
