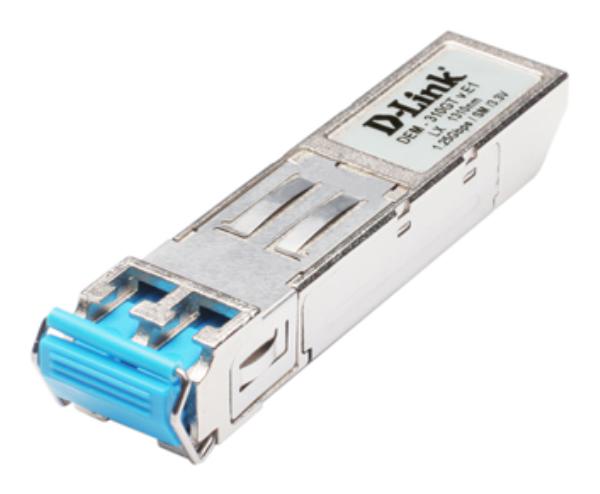

D-Link 1000Base-LX SFP Transceiver

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.The DEM-310GT is a high performance 1310nm Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability.

1000BASE-LX port (IEEE 802.3z standard)

Duplex LC connector

Full duplex operation

802.3x flow control support

Fiber type: 9um single-mode fiber up to 10km

Wave length: 1310nm

Power support 3.3V

Power budget: 10.5dB

Hot pluggable

Class 1 laser product complies with EN 60825-1

TTL signal detect idicator

Metal enclosure for lower EMI
