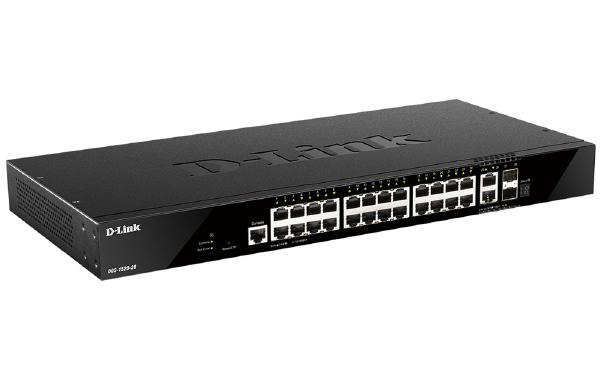

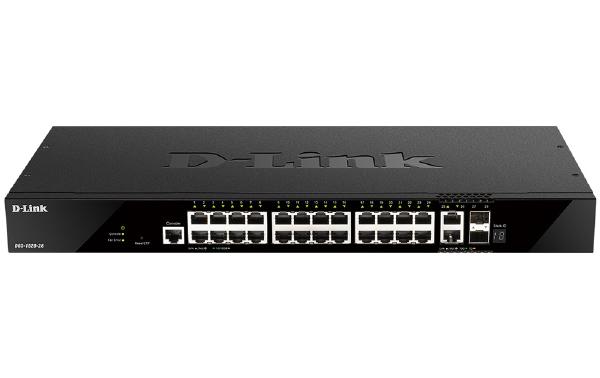

D-Link DGS-1520, 28-Port Stackable Smart Managed Switch with 24 Base-T, 2 (10G)Base-T and 2 (10G) SFP+ Ports

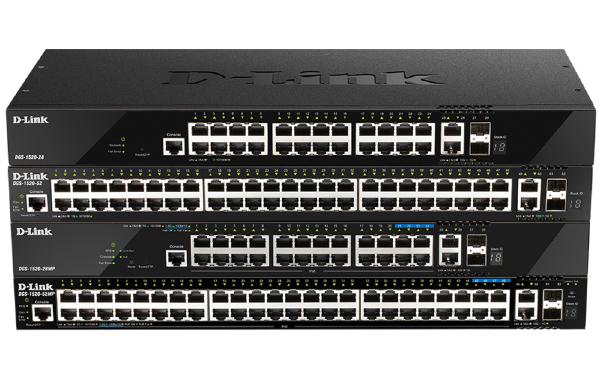

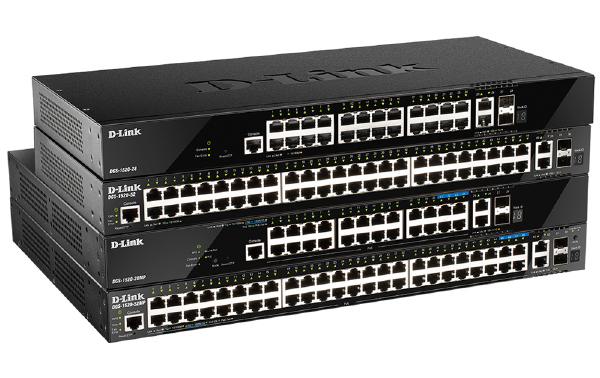

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity.

RJ-45 Ports: 26

RJ-45 Speeds: 1Gbps / 10Gbps

Combo Ports (RJ-45 + SFP): 24 Base-T, 2 (10G)Base-T and 2 (10G) SFP+ Ports

SFP (Small Form-Factor Pluggable) Ports : 2

SFP Speeds: 10G

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 95.24

Switching Capacity in Gigabits per Second (Gbps): 128

Web-based GUI: Yes

Redundant Power Supply: No

19" Rack Mountable: Yes

DIN-Rail Mountable: No

Stacking Capacity (Physical): Yes

Stacking Capacity (Virtual): Yes

IPv4 Routing: Yes

IPv6 Routing: Yes

DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes

Ruggedized: No

Operating Temperature: -5 to 50 C

Unit dimensions: 441 x 207.4 x 44 mm

Warranty Licence: Ltd L'Time
