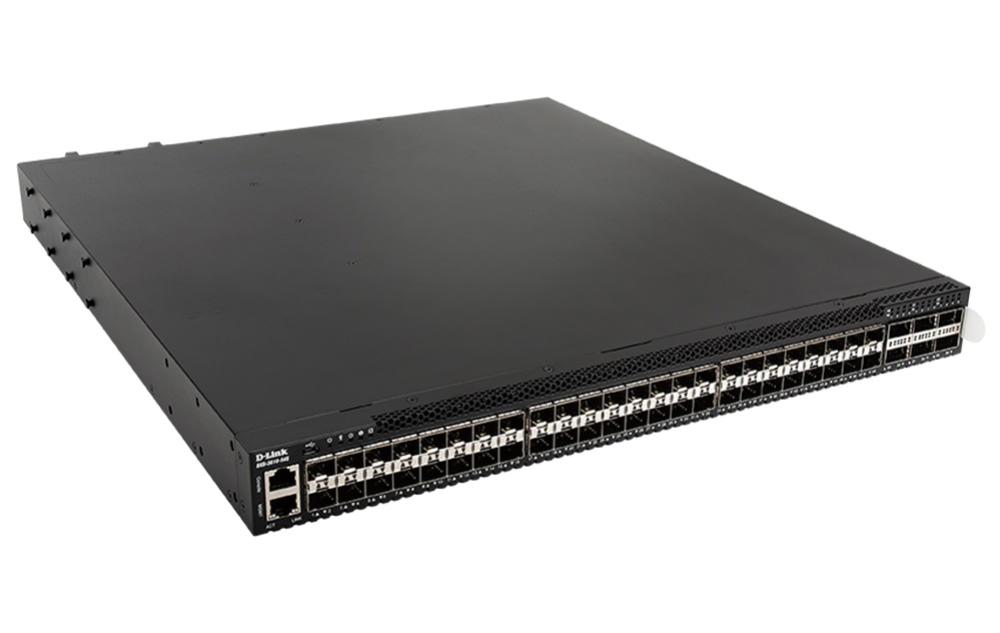

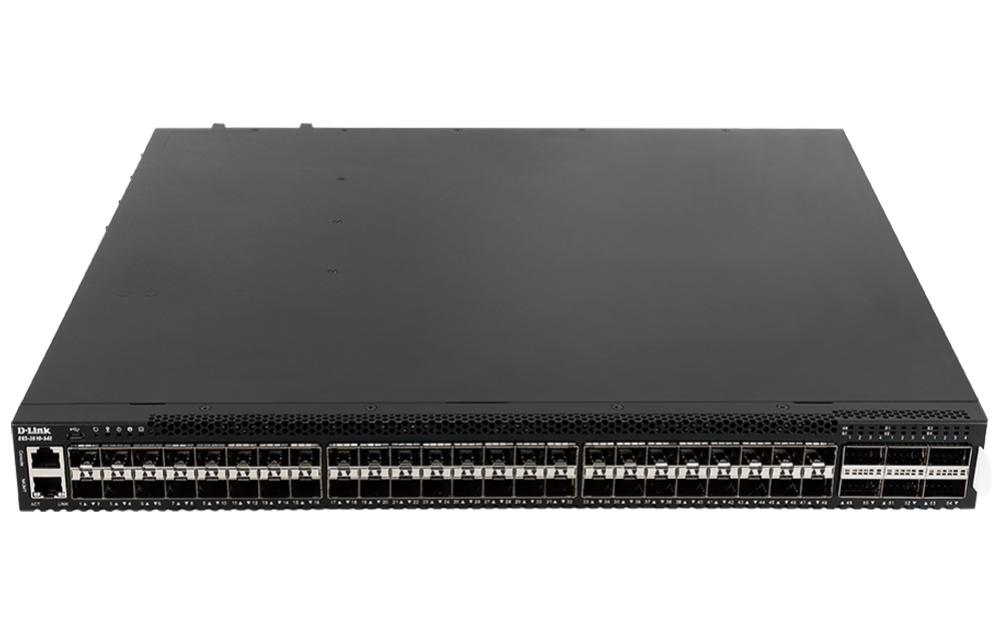

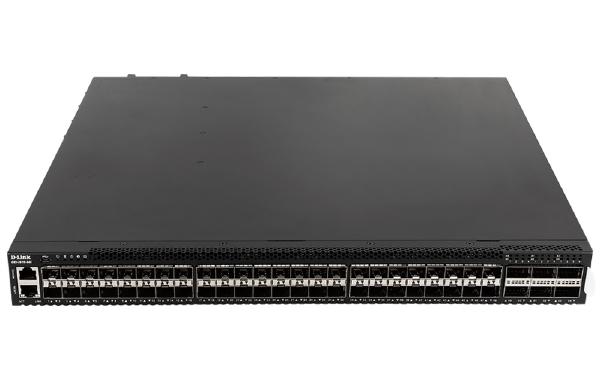

D-Link 54-Port Layer 3+ Fibre Switch

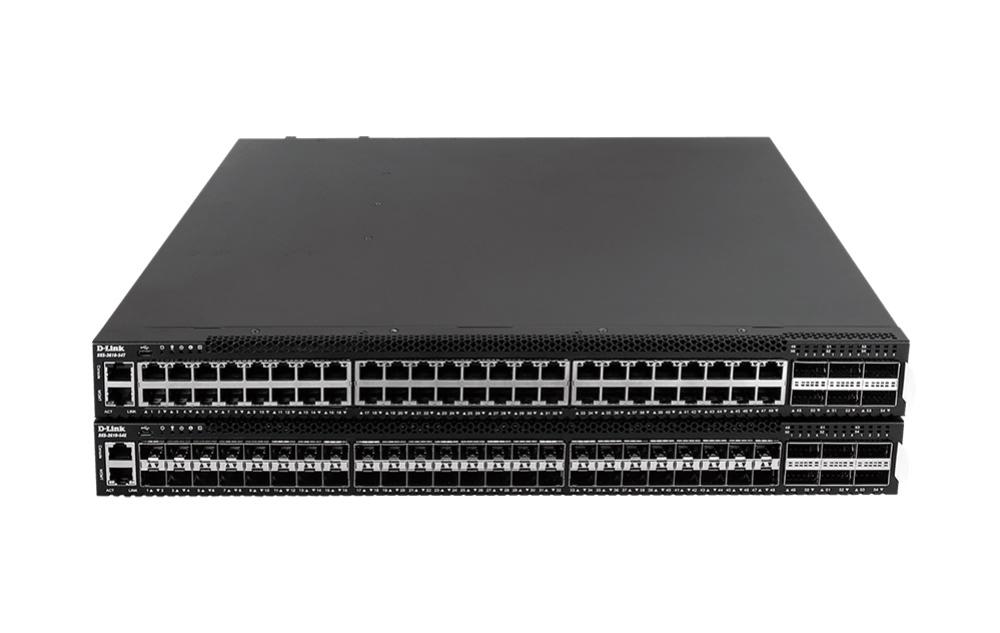

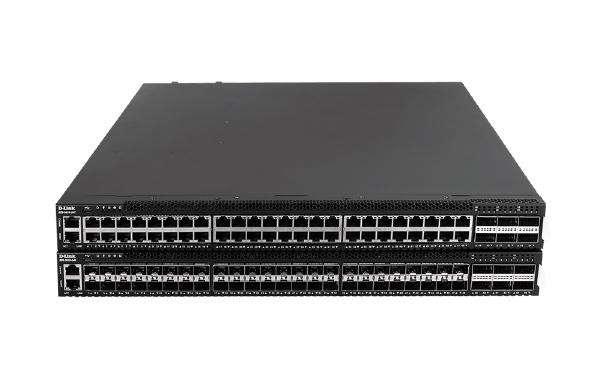

The D-Link DXS-3610 Series Layer 3 Stackable 10G Managed Switches are a set of new, compact, high-performance switches that feature ultra low latency, with 10G Ethernet switching and routing. The 1U height and front-to-back airflow make the DXS-3610 Series suitable for Enterprise and campus aggregation network environments. The DXS-3610 Series is available in two configurations; 48 fixed 10G SFP+ with 6 fixed 100G QSFP28 and 48 fixed 10G Base-T with 6 fixed 100G QSFP28. 100G ports allow for either uplink or stacking configurations, depending on your system’s needs.

RJ-45 Ports: 0

RJ-45 Speeds: 0

Combo Ports (RJ-45 + SFP): 48 (10G)SFP/SFP+ and 6 (40/100G) QSFP+/QSFP28 Ports

SFP (Small Form-Factor Pluggable) Ports : 54

SFP Speeds: 10G, 40/100G

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 1607.04

Switching Capacity in Gigabits per Second (Gbps): 2.16 Tbps

Web-based GUI: Yes

Redundant Power Supply: No

19" Rack Mountable: Yes

DIN-Rail Mountable: No

Stacking Capacity (Physical): Yes

Stacking Capacity (Virtual): Yes

IPv4 Routing: Yes

IPv6 Routing: Yes

DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes

Ruggedized: No

Operating Temperature: 0 to 45 C

Unit dimensions: 441.0 x 487.44 x 43.5 mm

Warranty Licence: LTD Life
