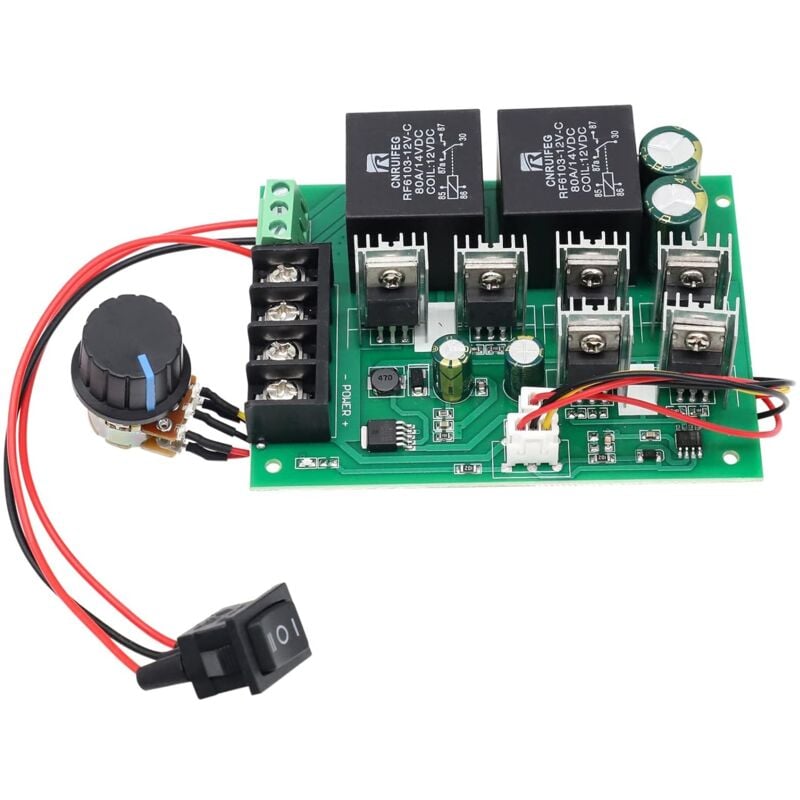

Dc Motor Controller, Dc 9-50V 40A Reversible Dc Motor Speed Controller To 12V 24V 36V 48V 2000W Reversible Speed Control
Dc Motor Controller, Dc 9-50V 40A Reversible Dc Motor Speed Controller To 12V 24V 36V 48V 2000W Reversible Speed Control
Couldn't load pickup availability
Dc Motor Controller, Dc 9-50V 40A Reversible Dc Motor Speed Controller To 12V 24V 36V 48V 2000W Reversible Speed Control
Higher current, high torque, forward/reverse direction You can adjust the motor speed and rotation direction.
The maximum current of this governor is 40A.

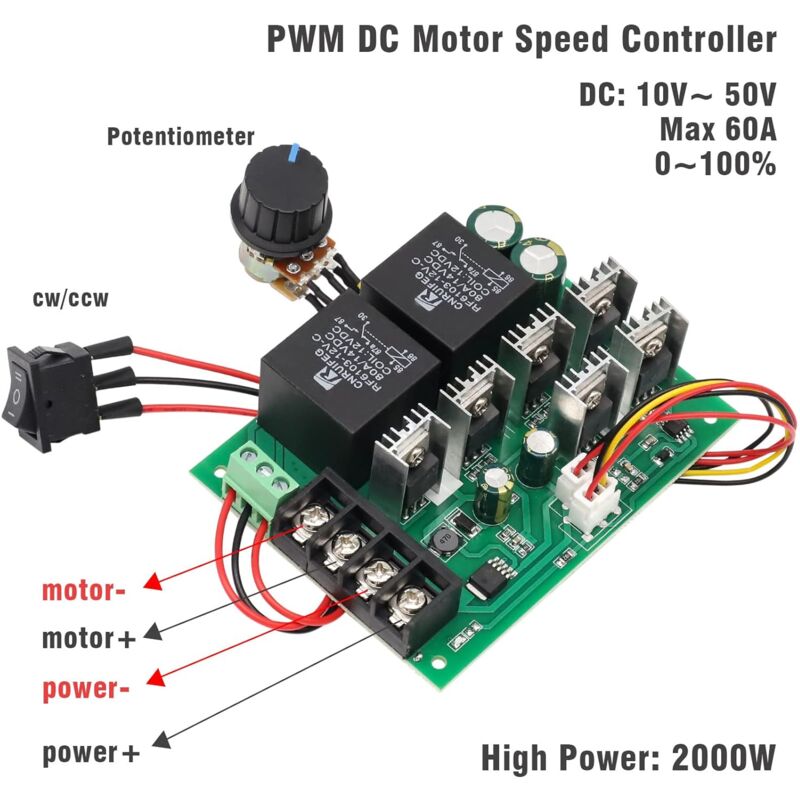

- Power requirement: DC 9-50V / wide operating voltage range Control power: 0.01-2000W (maximum rated current 40A, long operating current up to 20A) Direction control: Toggle switch, ""I"" is forward/right, ""II"" is reverse/left, and ""0"" is STOP/brake position Product feature: Higher current, high torque, reverse direction, with brake You can adjust the motor speed and rotation direction
The maximum current of this governor is 40A.

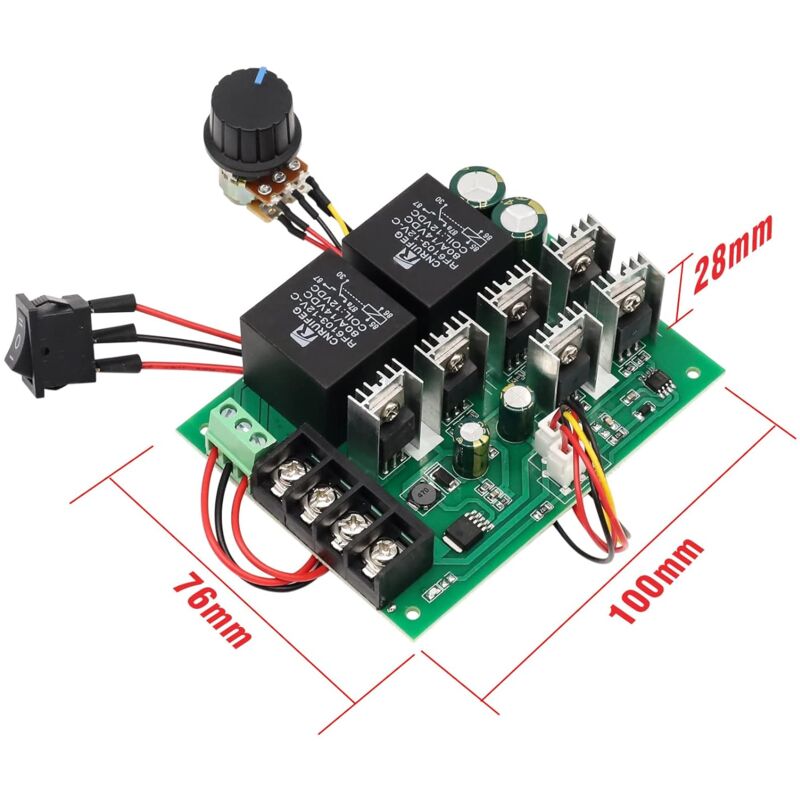

- Power requirement: DC 9-50V Rated current: 40A (maximum output current) Frequency: 25kHz Regulation range: 0-100% Function: forward to stop to reverse PCB size: 100mm x 76mm x 28mm Weight: 175g Control motor power: 0.01-2000W 12V: 480W (max), 24V: 960W (max) 48V: 1920W (max), 50V: 2000W (max) Notice: Make sure the positive and negative connections are correct before powering on, and the wiring should not touch the heat sink, which may burn the PCB
Note that this is not a power supply module, the motor must be connected to adjust the speed, and the multimeter output will not change if the motor is not connected, and it cannot be connected to AC power.
For brushed motors.
- Package List: 1 x DC Motor Speed Controller
