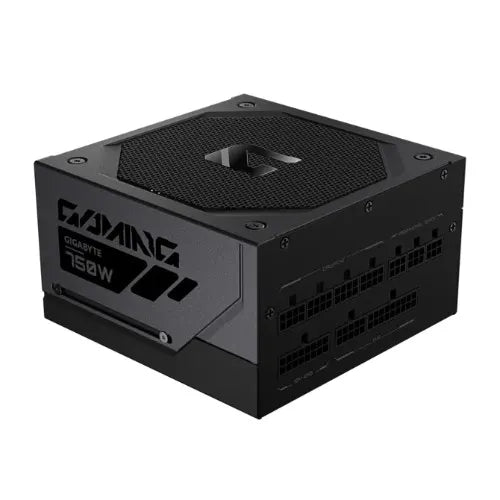

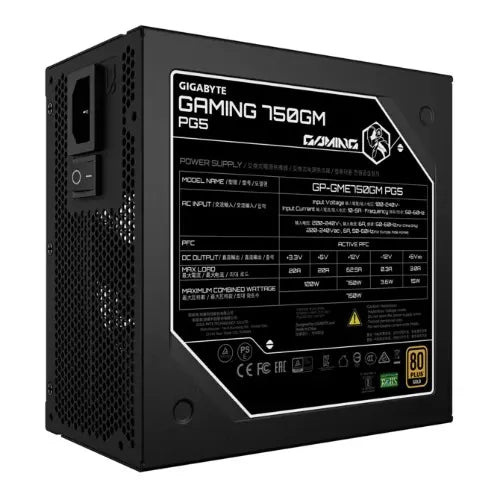

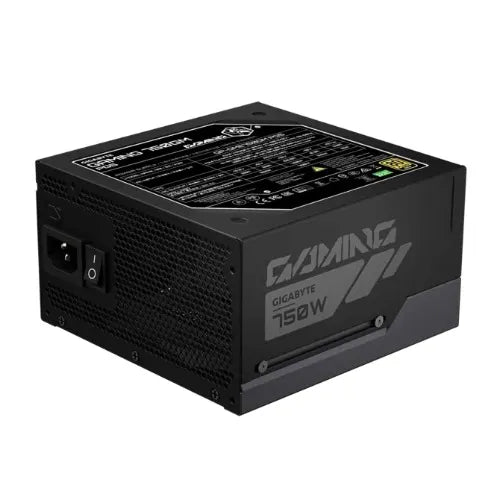

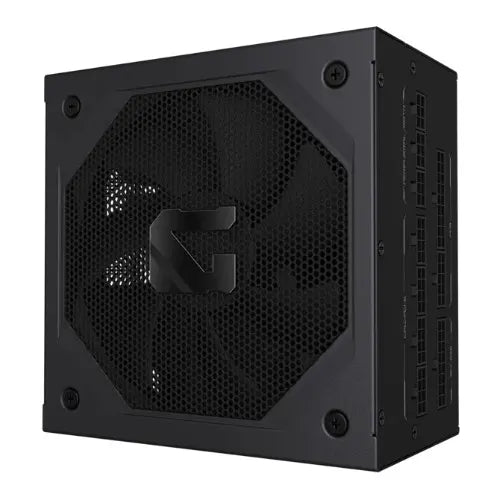

GIGABYTE GAMING 750GM PG5 750W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF 13.8-35.8dBA

GIGABYTE GAMING 750GM PG5 750W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF 13.8-35.8dBA FM
Model
GP-GME750GM PG5
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac
Input Current
10-5A
Input Frequency
50-60 Hz
Output Capacity
750W
Dimensions
150 x 150 x 86mm
Fan Type
135mm FDB Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP
Power Good Signal
100-150ms
Hold Up Time
>17ms(80% load)
Cable Type
Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
Noise Level: 13.8 ~ 35.8 dBA
