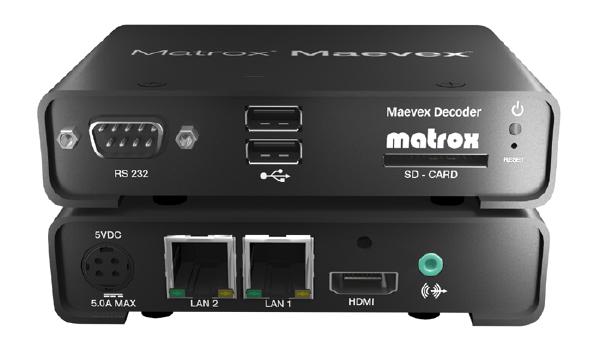

Matrox Maevex 5100 AV-over-IP Decoder, Standalone Appliance, Rack-mountable: 1U, 1/3 Rack, HDMI, 2x RJ45, 2 YR WTY

The Maevex 5100 Series encoders and decoders can stream or record up to 1080p60 video and audio over a standard IP network at user-defined low bitrates for excellent quality and minimal network bandwidth consumption. These cost-effective single-channel Full HD encoders and decoders use the RTSP streaming protocol and the H.264 video compression standard. The Maevex 5100 Series encoders can stream to Maevex decoders or any device or PC that supports H.264 and RTSP. It can also record to a shared network or NAS drive. Highly energy-efficient, fanless and backed with industry-leading reliability, the Maevex 5100 Series is sure to meet your encoding/decoding needs.

Encoding:

Extend/record up to Full HD 1080p60 and 1920x1200 video and audio

H.264 compression for high-quality, low-bandwidth AV-over-IP

Support for wide-screen & standard aspect ratios and many resolutions

Scale streams before distribution for lower bandwidth consumption

HDMI or analog audio support

Open encoding allows for third-party software decode (e.g. VLC)

Recording:

Record up to 1080p60/1920x1200 to NAS or shared network drive

Control frequency and duration of recording

Schedule the start time and date of recording sessions

Recorded user-defined file name includes timestamp for easy file management

Network Management:

Operates on standard 100/1000Mb Ethernet networks

Auto-detect and discover Maevex units on subnet (DHCP server required)

Full/half-duplex mode and static IP address support

CBR, VBR support

Failsafe:

Network bit-rate control (100 Kbps - 25 Mbps)

Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)

Maevex API:

Programmable time delay before failsafe activates

Integrate Maevex features in existing or new control software

Based on easy-to-use .NET programming language

Provided to select developers (no cost/license-free)

PowerStream Control Software:

Remotely manage Maevex network from different locations

Conveniently access IP address, bit rate, and other vitals

Fine-tune encode/decode parameters and adjust bit rates

Scale & crop content to fit different outputs

Other Benefits:

Daisy-chain decoders & extend network via integrated network switch

Failure resilience-power, network, and device auto-recovery features

Full duplex RS-232 control (pt. to pt.)

Reliable, solid-state, energy-efficient design

Local real-time pass-through and confidence preview on encoder

PowerStream-controlled user access from secured PC

Detailed LED indicators for easy and effective troubleshooting
