Shuttle PVG01 - VGA Port Extension for : DH610, DH610S, DH670, DH32U, DH410, DH470, XH510G, XH510G2

PVG01 - DS81, DH110, DS87, DH170, XH81V

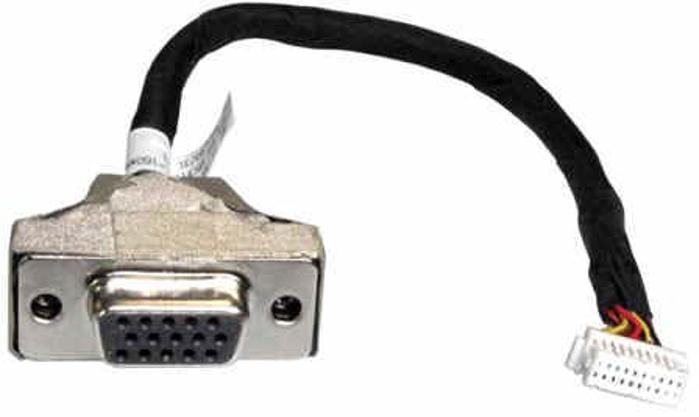

VGA port expansion kit for Shuttle Slim-PCs
The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards.
Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.
Scope of delivery:
- Adapter PVG01
- Installation guide
- Two screws
INTERNAL ADAPTER CABLE
Cable length
160 mm
Back panel connector
15-pin Mini D-Sub female socket (DE15)
Internal connector
Subminiature 2x10-pin, 1 mm Pitch Size, Female
Compatibility
Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
