Synology Rail Kit RKS-02 (Sliding) for 1U, 2U and 3U NAS Systems ( Replaces RKS1317 )

Synology Rail Kit RKS-02 enables easy maintenance access for Synology rackmount models. RKS-02 is backed by Synology's 1-year limited warranty.

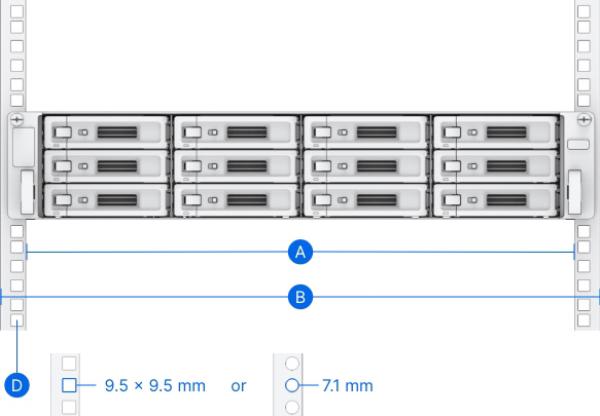

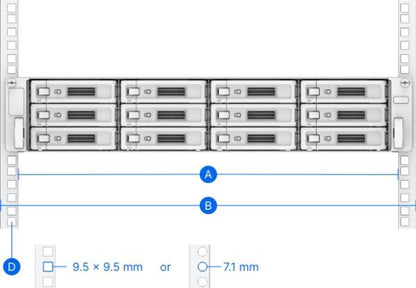

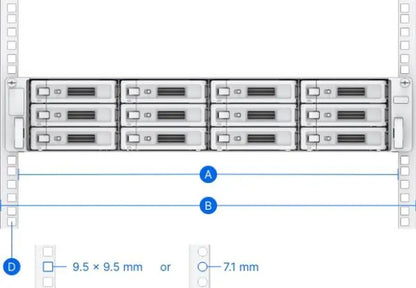

Installation requirements

Mount post width must be equal to or greater than 450 mm

Panel width must be equal to or greater than 480 mm

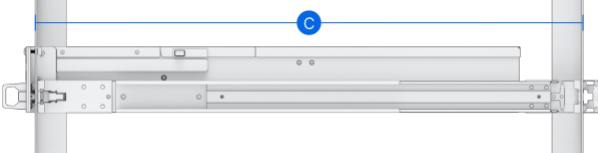

Rack mounting depth: 610 mm to 890 mm

Rack mounting hole support: square hole: at least 9.5 mm x 9.5 mm , round hole: at least 7.1 mm

Compatibility

FS series:FS6400, FS3600, FS3400, FS3017, FS2017

SA series:SA3600, SA3400, SA3200D

UC series:UC3200

22 series:RX1222sas

21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421

20 series:RS820RP+, RS820+

19 series:RS1619xs+, RS1219+, RS819, RXD1219sas

18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418

17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217

16 series:RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas

15 series:RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415

14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214

13 series:RS10613xs+, RS3413xs+, RX1213sas

12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812

11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211

10 series:RS810RP+, RS810+, RX410

9 series:RS409RP+, RS409+, RS409, RX
