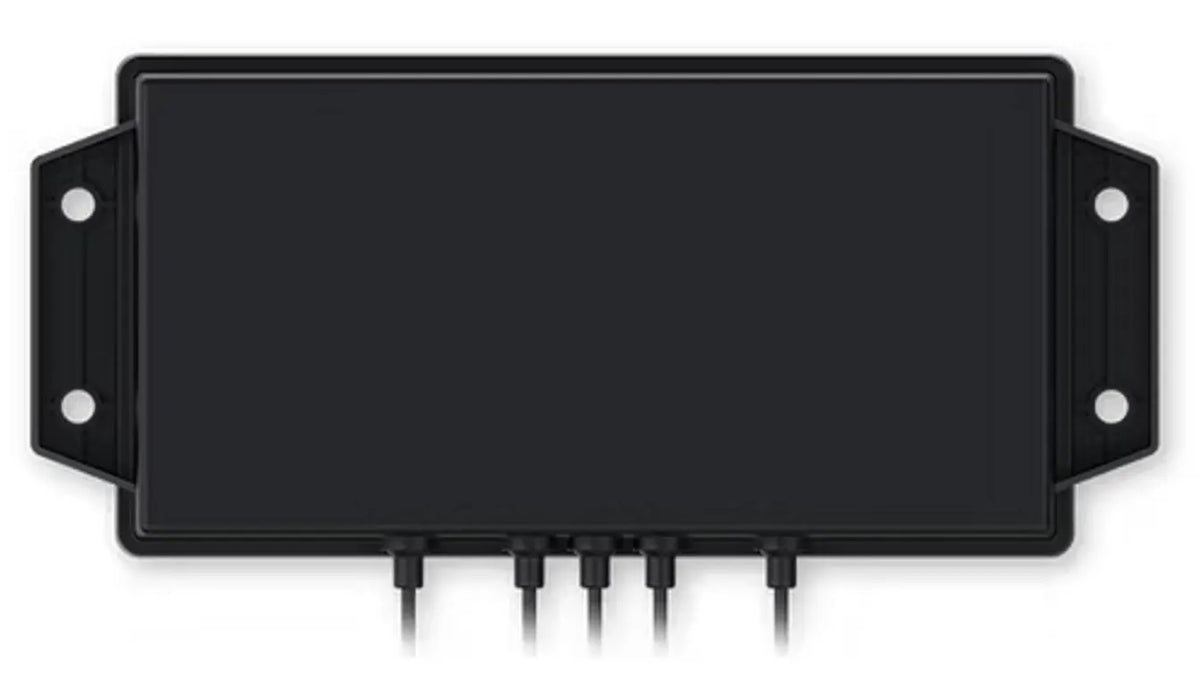

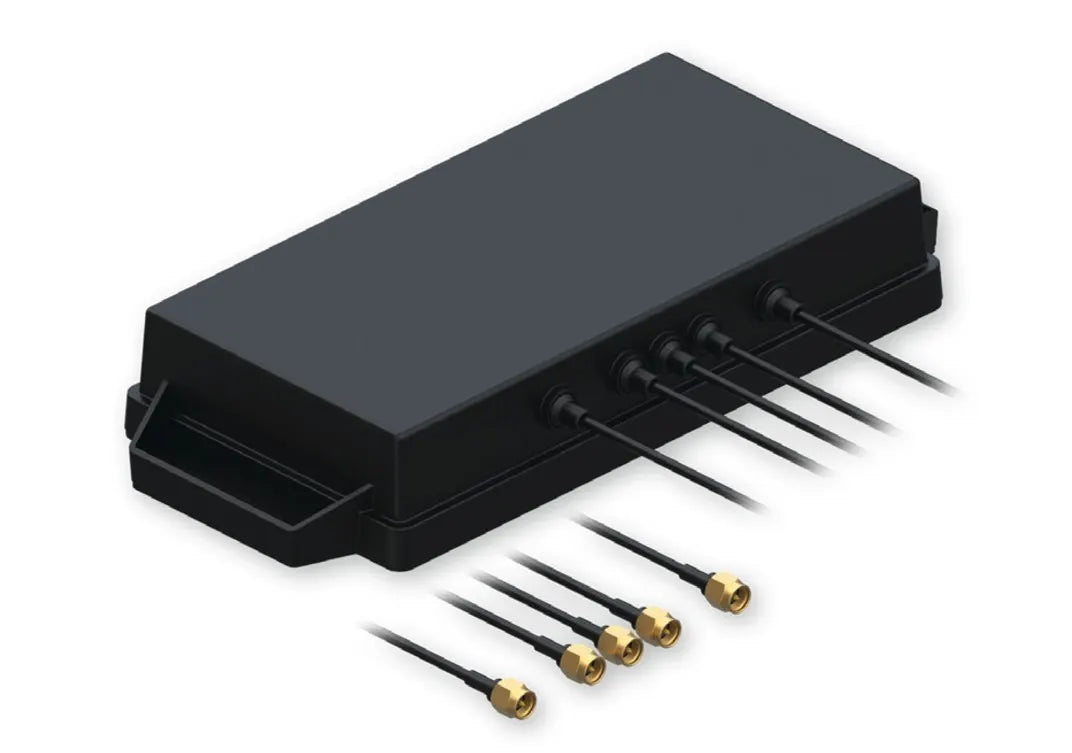

Teltonika 5G COMBO MOBILE/GNSS SMA ANTENNA

Technical Data
Mounting type
M6 Screw or Adhesive
Enclosure material
PC/PC+ABS
UV resistant
✓
Cable length
3000 mm
Weight
450 g
Operating temperature
-40 °C ~ +80 °C
Operating humidity
≤ 90 %
Ingress Protection Rating
IP67
RoHS compliant
✓
5G MOBILE MIMO ANTENNA
Frequency range
600 ~ 960, 1427 ~ 2700, 3300 ~ 4200, 4400 ~ 5000 MHz
Polarisation
Linear
Radiation pattern type
Omni-directional
Gain
≤ 4 dBi
V.S.W.R
≤ 2.5
Impedance
50 Ω
Connector type and count
4 x SMA Male
Cable type
4 x LMR100
GNSS ANTENNA
Frequency range
1559 ~ 1610, 1164 ~ 1189 MHz
Polarisation
RHCP
Radiation pattern type
Directional
Gain
≤ 2 dBi
LNA Gain
17 ± 2 dB
LNA noise figure
≤ 2 dB
V.S.W.R
≤ 2
Impedance
50 Ω
Supply voltage
3 ~ 5 VDC
Current consumption
15 mA
Connector type and count
1 x SMA Male
Cable type
1 x LMR100
