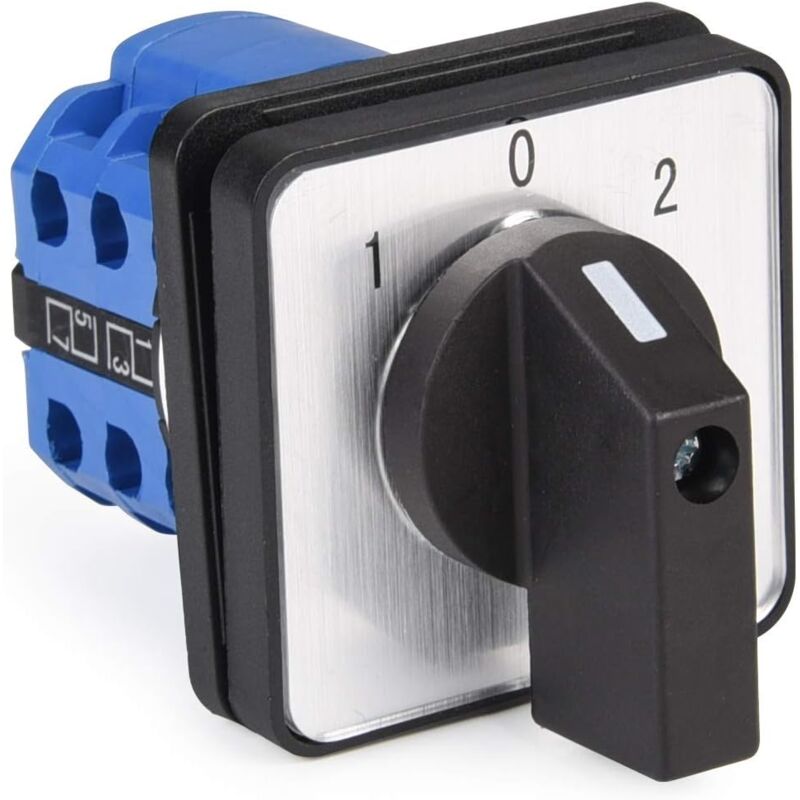

Universal Rotary Cam 20A 3 Positions 8 Terminals 690V Cam Switch

Universal Rotary Cam 20A 3 Positions 8 Terminals 690V Cam Switch

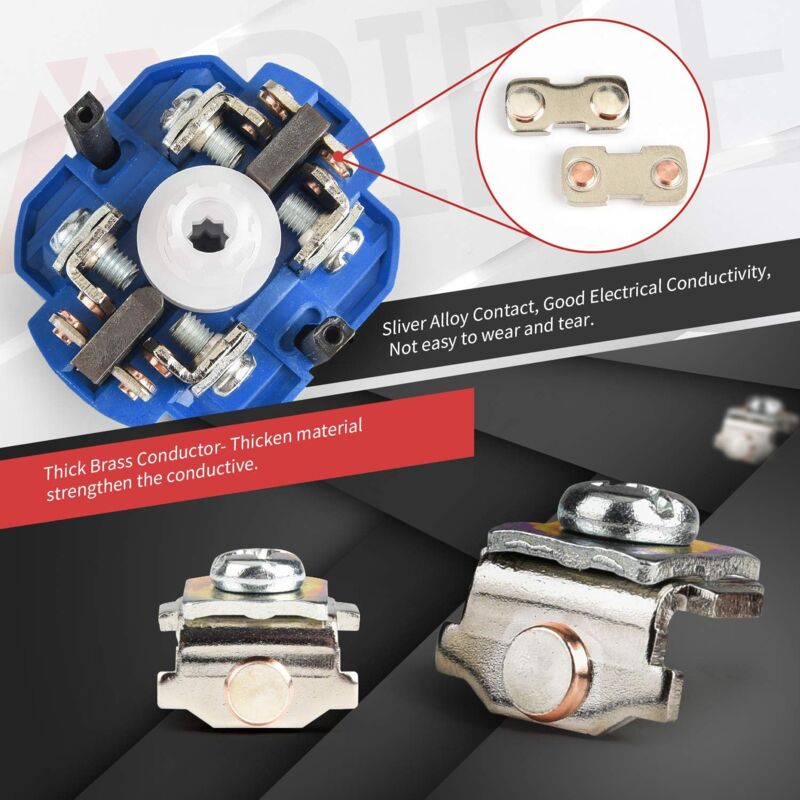

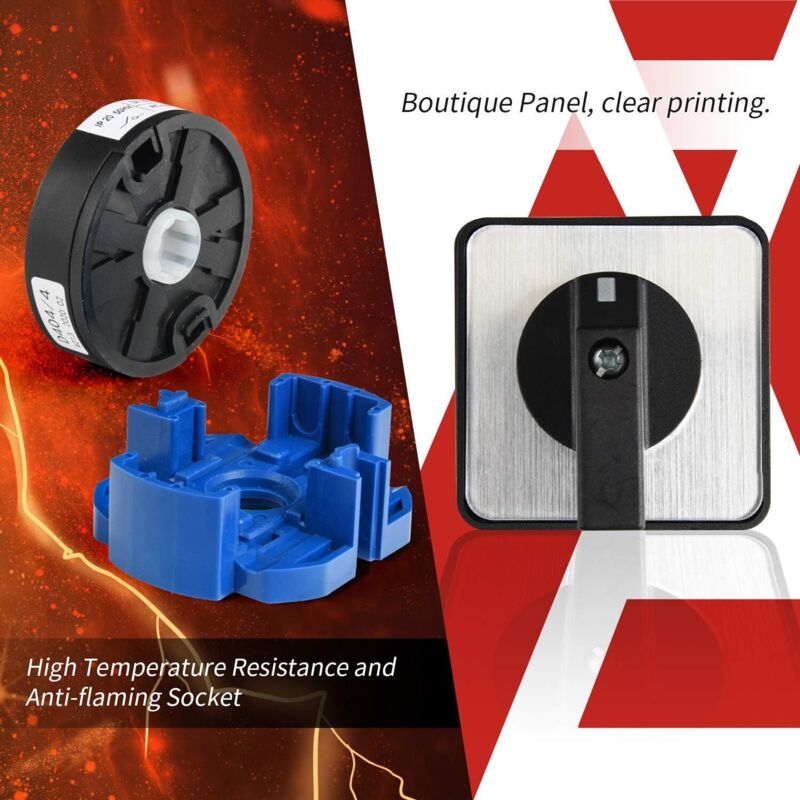

Product Name: 3-position load selector switch Ui: 690V, Ith: 20A, 8 terminals. Model: LW28-20/2, 3 positions (1-0-2), 2 phases, 8 terminals Locking switch panel size: 48 x 48 mm, Installation size: 36 x 36 mm Material: Flame retardant polycarbonate, high temperature resistance, high quality copper parts with silver alloy tip. 3-position universal rotary switch (20A, 8 terminals). 1. Suitable for thickness between 1 mm and 5 mm of the mounting plate. 2. The ideal choice for electrical wiring in circuit breakers, speed switches and asynchronous motors because their starting and reversing can also lead to the conversion of the control circuit. 3. Widely used as circuit control switch, motor control switch and main control switch, signal transmission switch or switch for electric welding machines and other devices. Package Contents: 1 x Power Switch 4 x Mounting Screws.
