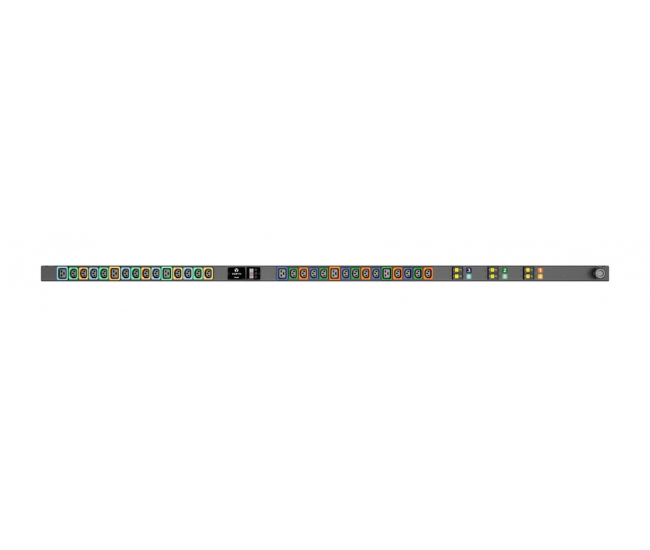

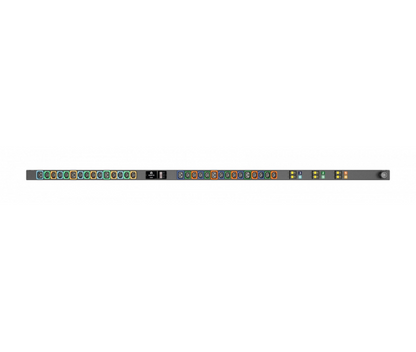

Vertiv Geist GI10058L rPDU Metered, Metered Upgradeable, 32A, 230/400V WYE, 22.0kW, 0U 24 Locking IEC C13, 6 Locking IEC C19, 3m 3P+N+E power cord

Vertiv Geist GI10058L rPDU, Metered Upgradeable, 32A, 230/400V WYE, 22.0kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.

Monitoring: Input Phase and Circuit/Breaker current monitoring. Local high visibility LED display.

Monitoring Level 1: Aggregate - Total Unit Monitoring (kWh, W, VA, PF), Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements

Monitoring Level 2: Phase (A, B, C) Monitoring (kWh, W, VA, PF, V, A), Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements

Monitoring Level 3: Circuit / Breaker Monitoring (A), Circuit/Breaker Current Measurements Independently Tested and Verified at 2% Accuracy

Voltage: 200-240/346-415V WYE

Current: 32A x 3 Phase WYE

VA per Input (Load Capacity): 22.0kW (230V)

Over Current Protection: (6) 16A Single Pole Magnetic Breakers

Switch: Breaker/Switch Combination

Power Cable Length: 10ft / 3m

Plug Type: IEC60309 3P + N + E, 32A, 230/400V, Splashproof IP44

Combined Total Receptacle/Socket Quantity: 30
